Marine Transmissions & Steering

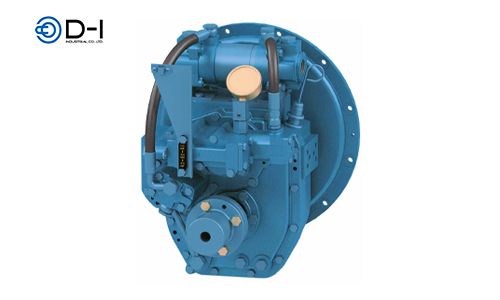

DMT25AL
Specifications
| Ratio | 1.64*, 2.07, 2.52, 2.96, 3.32 |
| Max Input Torque (kgf.m / N.m) | 55 / 539 |
| Capacity / RPM (kW / HP) | 0.056 / 0.075 |
| Capacity / 1800RPM (kW / HP) | 101 / 136 |
| Max Input RPM | 3000 |
| Standard Bell Housing (SAE) | 1, 2, 3 |

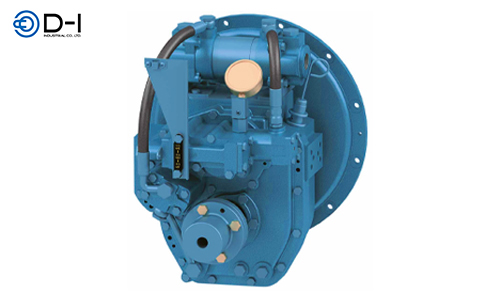

DMT 90 A
Specifications
| Ratio | 1.61*, 2.06, 2.45, 2.82, 3.12, 3.46 |
| Max Input Torque (kgf.m / N.m) | 87 / 857 |
| Capacity / RPM (kW / HP) | 0.089 / 0.122 |
| Capacity / 1800RPM (kW / HP) | 161 / 216 |
| Max Input RPM | 3000 |
| Standard Bell Housing (SAE) | 1, 2, 3, 4 |

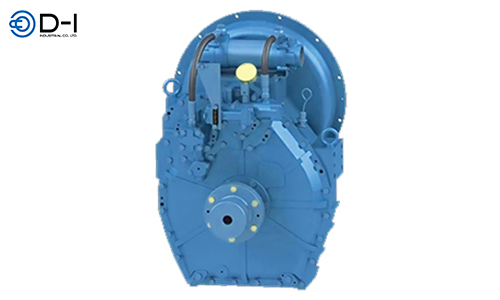

DMT 100 HL
Specifications
| Ratio | 4.07, 4.50, 4.95 | 5.29 | 5.95 |
| Max Input Torque (kgf.m / N.m) | 89 / 873 | 86 / 843 | 75 / 735 |
| Capacity / RPM (kW / HP) | 0.091 / 0.122 | 0.088 / 0.118 | 0.076 / 0.103 |
| Capacity / 1800RPM (kW / HP) | 164 / 219 | 158 / 213 | 138 / 185 |
| Max Input RPM | 3000 | ||
| Standard Bell Housing (SAE) | 1, 2, 3 | ||
| Dry Weight (kg) | 251 | ||
| Standard Scope Of Supply | Bell Housing, Dual Stage Coupling, Propeller Coupling, Manual Control Valve, Cable Bracket, Oil Cooler | ||
| Options | Electronic Control Valve(12V,24V), Manual Trolling Valve, Mounting Bracket | ||
